Docs
ServoyCloudSupportSamplesOpen SourceCommunity
  • Home
  • GUIDES
    • Platform Overview
    • Get Servoy
    • Get Started
      • Chapter 0
      • Chapter 1
      • Chapter 2
      • Chapter 3
      • Chapter 4
      • Chapter 5
    • Get Help
      • SuLA Instructions
      • SuLA Terms
    • Develop
      • Application Design
        • Forms
          • Layout Management
            • Simple Layout
            • Fully Responsive
              • Bootstrap 12-Grid
              • Flexbox
              • Custom Div
              • Collapsible Container
              • Simple Collapsible
              • Center Container
              • Inline Group Container
            • Abstract Form
          • Form Containers
            • Form Container
            • Tab Panel
            • Split Pane
            • Collapse
            • Accordion Panel
            • Form Component
            • List Form Component
          • Form Inheritance
          • Form Components
        • UI Components
          • Buttons and Text
            • Badge
            • Button
            • Data Label
            • Dropdown
            • Image
            • Label
          • Grids
            • Data Grid
            • Power Grid
            • Table
          • Input Controls
            • Calendar
            • Calendar Inline
            • Checkbox
            • Choice Group
            • Combobox
            • Group Buttons
            • Html Area
            • Input Group
            • Rating
            • Slider
            • Switch
            • Spinner
            • TextArea
            • Textbox
            • TextBoxGroup
            • Type Ahead
            • select2tokenizer
          • Media
            • Carousel
            • Embedded YouTube
            • File upload
            • Image label
            • Lightbox Gallery
            • MultiFile Upload
            • PDF JS Viewer
            • PDF Viewer
          • Mobile
            • Native Data List
            • Native Select
          • Navigation
            • Breadcrumbs
            • Navbar
            • sidenav
          • Visualization
            • DBTreeview
            • Progress Bar
            • Treeview
            • ChartJS
              • Data Labels Plugin
              • Funnel Chart
              • OutLabels Plugin
              • TreeMap
          • Specialized Components
            • Smart Document Editor
            • Servoy PDF Viewer
            • Fullcalendar Component
              • Fullcalendar
              • Fullcalendar Events
              • Migrating calendar from Smart and Web client to NG client
            • Fullcalendar Component 2
            • Canvas
            • Google Charts
            • Google Maps
            • svySignature
            • svywebcam
        • Styling and Themes
          • Default Theme Properties
          • CSS / LESS
          • Component Variants
          • Font Icons
        • Data Modeling
          • Databases
            • Tables
              • Columns
              • Calculations
              • Aggregations
              • Methods
              • Events / Triggers
              • Table security
            • Views
            • Procedures
          • Relations
          • Value Lists
          • Menus
          • In-Memory Databases
          • View Datasource
        • Modular Design
      • Programming Guide
        • Scripting the UI
          • Scripting Forms
          • Interacting with Components
          • Navigation
          • Windows, Dialogs and Popups
          • Events Manager
        • Working with Data
          • Concepts
          • Loading
          • Sorting
          • Iterating
          • Searching
            • Find mode
            • Query Builder
            • SQL String
          • Filtering
          • Editing
          • Validation
        • Automation and Scheduling
          • Batch Processor
          • Headless API
          • Scheduler API
        • Creating REST APIs
        • Consuming Webservices
        • Working with Files
          • File Plugin Basics
          • Images
          • Excel
          • PDF
          • JSON
        • Browser Utilities
          • Notifications
            • Web Notifications (Toastr)
            • Web Notifications (Native)
            • Block UI
          • Session Management
          • Keyboard Utilities
          • NG Utils
        • Sending and Receiving Email
        • Servoy Jasper Reports
          • Input Type
          • Display Mode
          • Output format
          • Jaspe Reports Viewer
        • Extensions
          • Modules
            • svyPhonegap
              • First Use Guide
              • Barcode Scanner
              • Browser
              • Camera
              • File
              • Fingerprint
              • Location
              • Network Interface
              • Phonegap
              • Printer
              • Push Notifications
            • svyAPI
              • Getting Started
            • svyLookup
              • Custom Templates
              • API Documentation
              • svyLookup v1
                • API Documentation v1.0.0
                • Base Form svyLookupTable v1.0.0
                • Base Form AbstractLookup v1.0.0
            • svyNavigation
              • API Documentation
                • API svyNavigation
                • API svyNavigationHistory
                • API svyNavigationUX
            • svyPopupFilter
              • Simple Filter Pickers
              • Custom Templates
              • API Documentation
                • API svyToolbarFilter
                • API svyPopupFilter
              • API Documentation v1
                • API svyToolbarFilter v1
                • API svyPopupFilter v1
            • svySearch
            • svySecurity
              • Overview
              • Token-based Auth and SSO (NEW!)
              • API Documentation
              • Getting Started
              • Tenant replication
              • Security Management Console
                • Classic Security Management Console
              • svySecurityUX
              • svyProperties
              • API Doc svyProperties
            • svyUtils
              • Log Manager
              • Log Manager Appenders
              • Smart Doc Editor Utils
              • Custom Dialogs
              • Excel Utils
                • Full API Reference
              • Crypto Utils
      • Security
        • Authentication
        • Permissions
          • UI Permissions
          • Data Permissions
          • Runtime Permissions
        • Audit Logging
        • OAuth
        • JWT
      • Multi-Language Support
      • Mobile Development
        • Getting Started
        • Mobile Design
        • Native Mobile Integrations
        • Building a Native Binary for the App Store
      • Native Desktop Development
        • NGDesktop UI plugin
        • NGDesktop Utils
        • NGDesktop File Plugin
    • Deploy
      • WAR Deployment
      • Docker Deployment
      • Server Configuration
        • Server Settings
        • Server Plugins
        • Database Servers
          • Locks
          • Transactions
          • Oracle
          • SQLServer
        • Client Sessions
        • Batch Processors
        • License Management
        • Monitoring
          • Server Log
          • Browser Console Log
          • Websocket Log
          • Query Performance
          • Client Performance
          • Client Event Tracing
          • Monitoring Servoy with JMX
      • NGClient deployment
      • Troubleshooting
      • Other Topics
        • Security: Cross-site Scripting
        • Running in an iFrame
    • Extend
    • Contribute
  • Reference
    • Servoy Core
      • Object Model
        • Database Server
          • Table
            • Column
            • Calculation
            • Method
            • Aggregation
          • View
          • Procedure
        • Solution
          • Form
          • Form Component
          • Relation
          • Relation Item
          • Table Node
          • Value List
          • Menu
          • Menu item
          • In-Memory Data Source
          • View Foundset Data Source
          • Variable
          • Column Info
          • Media
          • Layout Container
          • Method
        • i18n Message Key
      • Developer API
        • Globals
        • Forms
          • RuntimeForm
            • controller
            • containers
              • RuntimeContainer
            • elements
              • Component
              • RuntimeAccordionPanel
              • RuntimeBean
              • RuntimeButton
              • RuntimeCalendar
              • RuntimeCheck
              • RuntimeCombobox
              • RuntimeComponent
              • RuntimeDataButton
              • RuntimeDataLabel
              • RuntimeGroup
              • RuntimeHtmlArea
              • RuntimeImageMedia
              • RuntimeInsetList
              • RuntimeLabel
              • RuntimeListBox
              • RuntimePassword
              • RuntimePortal
              • RuntimeRadio
              • RuntimeChecks
              • RuntimeRadios
              • RuntimeRectangle
              • RuntimeRtfArea
              • RuntimeSpinner
              • RuntimeSplitPane
              • RuntimeTabPanel
              • RuntimeTextArea
              • RuntimeTextField
              • RuntimeWebComponent
        • JS Lib
          • Array
          • BigInt
          • Boolean
          • Date
          • Function
          • IterableValue
          • Iterator
          • JSON
          • Map
          • Set
          • Math
          • Namespace
          • Number
          • Object
          • Promise
          • QName
          • RegExp
          • Special Operators
          • Statements
          • String
          • XML
          • XMLList
        • Application
          • APPLICATION_TYPES
          • CLIENTDESIGN
          • DRAGNDROP
          • ELEMENT_TYPES
          • LOGGINGLEVEL
          • NGCONSTANTS
          • UICONSTANTS
          • CSSPosition
          • JSDimension
          • JSDNDEvent
          • JSEvent
          • JSLogger
          • JSLogBuilder
          • JSPoint
          • JSUpload
          • JSWindow
          • JSBounds
          • Renderable
          • UUID
        • SolutionModel
          • ALIGNMENT
          • ANCHOR
          • BEVELTYPE
          • CURSOR
          • DEFAULTS
          • FONTSTYLE
          • MEDIAOPTION
          • PAGEORIENTATION
          • PRINTSLIDING
          • SCROLLBAR
          • TITLEJUSTIFICATION
          • TITLEPOSITION
          • UNITS
          • JSBean
          • JSButton
          • JSCalculation
          • JSComponent
          • JSDataSourceNode
          • JSField
          • JSForm
          • JSLabel
          • JSMedia
          • JSMethod
          • JSPart
          • JSPortal
          • JSRelation
          • JSRelationItem
          • JSStyle
          • JSTab
          • JSTabPanel
          • JSValueList
          • JSVariable
          • JSTitle
          • JSChecks
          • JSCombobox
          • JSHeader
          • JSInsetList
          • JSList
          • JSPassword
          • JSRadios
          • JSText
          • JSTextArea
          • JSWebComponent
          • JSLayoutContainer
        • Database Manager
          • QUERY_COLUMN_TYPES
          • SQL_ACTION_TYPES
          • JSColumn
          • JSDataSet
          • JSBaseRecord
          • JSBaseSqlRecord
          • JSBaseFoundset
          • JSBaseSQLFoundset
          • JSFoundSet
          • JSFoundSetUpdater
          • JSRecord
          • JSRecordMarker
          • JSRecordMarkers
          • JSTable
          • JSTableFilter
          • MenuFoundSet
          • MenuItemRecord
          • QBAggregate
          • QBAggregates
          • QBCase
          • QBCaseWhen
          • QBColumn
          • QBColumns
          • QBCondition
          • QBFunction
          • QBFunctions
          • QBGroupBy
          • QBJoin
          • QBJoins
          • QBLogicalCondition
          • QBParameter
          • QBParameters
          • QBPart
          • QBResult
          • QBSearchedCaseExpression
          • QBSelect
          • QBSort
          • QBSorts
          • QBTableClause
          • QBWhereCondition
          • ViewFoundSet
          • ViewRecord
        • Events Manager
          • EVENTS_AGGREGATION_TYPES
          • EventType
        • Menus
          • JSMenu
          • JSMenuItem
        • JSMenuDatasource
        • Utils
        • Client Utils
          • JSBlobLoaderBuilder
        • History
        • Security
        • i18n
        • ServoyException
          • DataException
        • JSUnit
        • Datasources
          • DBDataSource
          • DBDataSourceServer
          • JSConnectionDefinition
          • JSDataSource
          • MemDataSource
          • MenuDataSource
          • SPDataSource
          • SPDataSourceServer
          • ViewDataSource
        • JSViewDatasource
        • servoyDeveloper
        • enum
    • Extensions
      • UI Components
        • Buttons and Text
          • Badge
          • Button
          • Data Label
          • Drop Down
          • Image
          • Label
        • Form Containers
          • Accordion Panel
          • Collapse
          • Form Container
          • Form Component Container
          • List Form Component
          • Default Loading Indicator
          • Error Bean
          • Portal
          • Responsive Container
          • Servoy Default Navigator
          • Slider
          • Split Pane
          • TabPanel
        • Grids
          • Data Grid
          • Power Grid
          • Table
        • Input Controls
          • Calendar
          • Calendar Inline
          • Checkbox
          • Choice Group
          • Combobox
          • Floatinglabel Calendar
          • Floatinglabel Combobox
          • Floatinglabel Textarea
          • Floatinglabel Textbox
          • Floatinglabel Type Ahead
          • Group Buttons
          • Html Area
          • Input Group
          • Rating
          • Select2tokenizer
          • Slider
          • Spinner
          • Switch
          • TextArea
          • TextBox
          • TextBox Group
          • Type Ahead
        • Media
          • Carousel
          • Embedded YouTube
          • File upload
          • Image label
          • Lightbox Gallery
          • MultiFile Upload
          • PDF JS Viewer
          • PDF Viewer
        • Mobile
          • Native Data List
          • Native Select
        • Navigation
          • Breadcrumbs
          • Navbar
          • sidenav
        • SmartDocEditor
          • Smart Document Editor
        • Visualization
          • Canvas
          • Chart
          • Custom List
          • DBTreeview
          • Foundset List
          • Fullcalendar
          • Gauge
          • Google Maps
          • Kanban
          • Progress Bar
          • Treeview
      • Server Plugins
        • amortization
          • AmortizationCalculation
          • Polynomial
        • clientmanager
          • Broadcaster
          • JSClientInformation (cm)
        • excelxport
        • file
          • JSFile
          • JSProgressMonitor
        • headlessclient
          • JSClient
        • http
          • HTTP_STATUS
          • Cookie
          • DeleteRequest
          • GetRequest
          • HeadRequest
          • HttpClient
          • HttpClientConfig
          • OptionsRequest
          • PostRequest
          • PutRequest
          • Response
          • TraceRequest
          • PatchRequest
          • JSFileUpload
        • images
          • JSImage
        • jwt
          • Algorithm
          • Builder
          • JWTClaims
        • mail
          • Attachment
          • MailMessage
        • maintenance
          • JSClientInformation
          • JSColumnObject
          • JSServer
          • JSTableObject
        • mobileservice
          • OfflineDataDescription
        • oauth
          • ClientAuthentication
          • CustomApiBuilder
          • OAuthProviders
          • OAuthRequest
          • OAuthResponse
          • OAuthResponseBinary
          • OAuthResponseJSON
          • OAuthResponseText
          • OAuthService
          • OAuthServiceBuilder
          • OAuthTokenExtractors
          • RequestType
        • pdf_output
        • rawSQL
        • RestWs plugin
        • rest_ws
          • WsContents
          • WsCookie
          • WsRequest
          • WsResponse
        • scheduler
        • serialize
        • textxport
          • DataProviderExport
          • TabExporter
        • udp
          • JSPacket
        • XmlReader
          • XmlNode
      • Browser Plugins
        • Block UI
        • Block UI (ref)
        • Dialogs Plugin
        • Idle
        • Idle (ref)
        • Key Listener
        • Key Listener (ref)
        • NGDesktop File
        • NGDesktop File (ref)
        • NGDesktop UI (ref)
        • NGDesktop Utils (ref)
        • NG Utils (ref)
        • Office Javascript API for Servoy
        • Phonegap
        • Web Notifications (Native)
        • Web Notifications (Toastr)
        • Window Plugin
        • Font Awesome
      • Modules
        • Smart Doc Editor Utils
        • svyAPI
          • Getting Started
        • svyLookup
          • Custom Templates
          • API Documentation
          • svyLookup v1
            • API Documentation v1.0.0
            • Base Form svyLookupTable v1.0.0
            • Base Form AbstractLookup v1.0.0
        • svyLookupExample
        • svyNavigation
          • API Documentation
            • API svyNavigation
            • API svyNavigationHistory
            • API svyNavigationUX
        • svyNavigationUX
        • svyNavigationUXSample
        • svyPopupFilter
          • Simple Filter Pickers
          • Custom Templates
          • API Documentation
            • API svyToolbarFilter
            • API svyPopupFilter
          • API Documentation v1
            • API svyToolbarFilter v1
            • API svyPopupFilter v1
        • svyProperties
        • svySearch
        • svySecurity
          • Overview
          • Token-based Auth and SSO (NEW!)
          • API Documentation
          • Getting Started
          • Tenant replication
          • Security Management Console
            • Classic Security Management Console
          • svySecurityUX
          • svyProperties
          • API Doc svyProperties
        • svySecurityConsole
        • svySecurityUX
        • svyUtils
          • Log Manager
          • Log Manager Appenders
          • Smart Doc Editor Utils
          • Custom Dialogs
          • Excel Utils
          • Full API Reference
          • Crypto Utils
        • svyUtils$Excel
        • svyUtils$NGClient
        • svyUtils$customDialogs
        • svyUtils$logManagerAppenders
        • svyUtils$tableGrid
      • Layout
        • Boostrap 12grid layout
          • Collapsible Container
          • Simple Collapsible
          • Center Container
          • Inline Group Container
          • Flexbox Layout
      • Solutions
        • Sample Application
          • Tutorial Part 1
          • Tutorial Part 2
      • Packages
        • UI Component Packages
          • Advanced Renderers
          • Bootstrap Components
          • Bootstrap Extra Components
          • Canvas
          • Chart JS
          • Fullcalendar Component
          • googlemaps
          • kanban
          • Servoy Core
          • Servoy Extra Components
          • Servoy NG-Grids
          • Servoy PDF Viewer
          • smartDocumentEditor
        • Browser Plugin Packages
          • Block UI
          • Core NG only Services
          • Key Listener
          • NGDesktop File
          • NGDesktop UI
          • NGDesktop Utils
          • Web Notifications
          • Idle Web Service
    • Servoy Developer
      • Menu
        • File
        • Edit
        • Source
        • Refactor
        • Navigate
        • Search
        • Project
        • Actions
        • Run
        • Window
        • Help
      • Toolbar
      • Solution Explorer
        • Resources
          • Database Servers
            • Database Server
              • Procedures
              • Tables
              • Views
          • Security
          • i18n
        • All Solutions
          • Solution
          • Active Solution
            • Scopes
              • Scope
                • Variables
            • Forms
              • Working Set
              • Form
                • Controller
                • Variables
                • Elements
                • Relations
            • Form Components
              • Form Component
            • Relations
              • Relation
            • ValueLists
              • ValueList
            • Menus
              • Menu
                • MenuItem
            • Media
              • Folder
              • File
            • DataSources
              • In Memory DataSources
                • In Memory DataSource
              • View Foundsets DataSources
                • View Foundset DataSources
            • Servoy Packages
              • Package
            • Modules
              • Module
        • Solution Explorer Contextual List
      • Views
        • Command Console
        • Console
        • Problems
        • Tasks
        • Bookmarks
        • Search
        • Form Hierarchy
        • Help
        • JUnit
        • Outline
        • Profiler
        • Properties
        • Project Explorer
        • Call Hierarchy
      • Editors and Wizards
        • Property configurator for columns
        • Relation Editor
        • Text Format Editor
        • Date Format Editor
        • Number Format Editor
        • Database Synchronization Wizard
        • Security Editor
        • SQL Editor
        • i18n Editor
        • File Import Wizard
        • File Export Wizard
        • WAR Export Wizard
        • NGDesktop Export Wizard
        • Table Editor
        • Metadata Synchronization Wizard
        • Database Server Connection Editor
        • Text Property Editor
        • Valuelist Editor
        • Form Editor
          • Parts of the Form Editor
          • Designing a Form
          • Layout Tools
          • Using Containers
          • Creating and Using Forms
          • Using Servoy Beans
          • Using Shapes
          • Form Editor Subtabs
          • [Tips and Shortcuts][reference/servoy-developer/object-editors/form-editor-tips_and_shortcuts.md]
          • Editong a Responsive LayoutForm
          • CSS Positioning
        • Form Hierarchy
        • Component Properties Editor
        • Variable Editor
        • Method Selection Wizard
        • New Solution Wizard
        • Application Event Types Editor
        • New Form Wizard
        • Form Dataproviders Configurator
        • Servoy Resource Locator
        • Datasource Selection Wizard
        • Sorting Fields Wizard
        • Scripting Editor
          • Getting Started-Overview of Script Editor
          • Code Writing Features
          • Code Navigation
          • Code Rewriting Tools
          • Refactoring
          • Code Formatting
          • Script Editor Tips and Shortcuts
          • Unit Tests
        • Theme Editor
          • General Properties
          • Sidenav Properties
          • Navbar Properties
          • Tabs Properties
          • Windows Properties
          • Dialogs Properties
          • Tables Properties
          • Breadcrumb specific style Properties
          • Brand colors Properties
          • Validations Properties
          • Margins and Padding Properties
        • Editor Selection
        • Run Configurations
        • Debug Configurations
        • Externalize Strings Wizard
        • Font Chooser Wizard
        • Color Chooser Wizard
        • Project Properties Configurator
        • Move Wizard
        • External Tools Configurations
        • About Servoy Developer
        • Servoy Developer Installation Details
        • Eclipse Marketplace Wizard
        • Install Available Software Wizard
        • Cheat Sheet Selection Wizard
        • Servoy Developer Help Wizard
        • Switch to Editor Wizard
        • Find Actions Wizard
        • Customize Perspective Configurator
        • Quick Search Wizard
        • Search Wizard
        • Encoding Wizard
        • Task Wizard
        • Find - Replace Wizard
        • Properties Editor
        • New Project Wizard
        • New Method Wizard
        • New Menu Wizard
          • New MenuItem Wizard
        • Menu Editor
        • ServoyMenu Selection Wizard
        • JSMenu compatible component selector
        • Permissions Configuration Dialog
      • Project File Structure
        • Servoy Installation Directory
          • servoy.properties
        • Workspace Folder
          • Resources Directory
            • Database Information (.dbi) Files
          • Solution Folder
      • Package Manager
      • Preferences
      • Property Types for components / services
      • Debugger
        • Debug Explorer
        • Breakpoints
          • Breakpoint Properties
        • Variables
        • Expressions
        • Interactive Console
    • Application Server
    • Servoy Cloud
      • Cloud Control Center
        • Home
          • Setup Namespace
          • User profile
            • My Profile
            • Support
        • Download IDE
        • Application Overview
          • Applications
            • Pipelines
              • Jobs
                • Packages
                  • Commits
                  • Artifacts
                  • Configuration
                  • Quality reports
                  • Build markers
                • Job Configuration
                  • Build and Deploy or Build
                  • Mobile
                  • Desktop
            • Environments
              • Metrics
                • Users
                • Databases
                  • Metrics
                • System Health
                • Log Activity
                • App performance
                • Query performance
              • Cloud reporting
            • Security
              • Permissions
              • Tenants
            • Reports
            • Security Login Designer
              • Single Sign-On
                • Sign in with Google
                • Sign in with Microsoft
          • Code Repositories
        • Project Management
          • Tickets
          • Backlog
          • Active Sprints
        • User Management
          • Users
          • Roles
        • Administration
          • Security
            • ServoyCloud Roles
          • Credentials
          • Settings
        • Add-Ons
      • Database Backup
      • E2E Cypress Testing
        • Using Cypress
      • On-Premise Deployment
      • Privacy policy (ServoyAI)
      • FAQ
      • Migrate to Servoy Cloud
    • Extensions Developement
      • Component and Services
        • Component Development
        • Service Development
        • Tools and Dev Tips to use for Component/Service developement
        • Manifest (.mf file)
        • Specification (.spec file)
          • Property Types
            • Array property types
            • Custom object property types
            • Findmode property type
            • Foundset property type
            • Tags
        • Directives And Filters
          • Sablotabsequence
        • Console (serverside)
        • ServoyApi (serverside)
      • Serverside Plugins
        • Data Convertors and Validators
        • UI Convertors
  • Release notes
    • Release notes
      • 2025.03
      • 2024.03 (LTS)
      • 2023.03 (LTS)
      • 2025.03 (Servoy Cloud)
      • 2024.12
      • 2024.12 (Servoy Cloud)
      • 2024.09
      • 2024.09 (Servoy Cloud)
      • 2024.06
      • 2024.06 (Servoy Cloud)
      • 2024.03 (Servoy Cloud)
      • 2023.12
      • 2023.12 (Servoy Cloud)
      • 2023.09
      • 2023.09 (Servoy Cloud)
      • 2023.06
      • 2022.03 (LTS)
      • 2022.12 What's new
      • 2022.12
      • 2022.09 What's new
      • 2022.09
      • 2022.06 What's new
      • 2022.06
      • 2021.03.3 (LTS)
Powered by GitBook
On this page
  • Overview
  • Get Started
  • Create a Relation
  • Using a Relation at Design-Time
  • Using a Relation at Run-Time
  • Special Relations
  • Dynamic Relation
  • Global Relation
  • Self Relation
  • Container Relation

Was this helpful?

  1. GUIDES
  2. Develop
  3. Application Design
  4. Data Modeling

Relations

PreviousProceduresNextValue Lists

Last updated 1 year ago

Was this helpful?

Overview

Relations, at design-time model associations between two tables by joining on key data providers. At runtime, a relation becomes a context-sensitive programming reference to related data. Thus, relations are simple, but powerful mechanisms to display, edit and search for data from any context. They can be used, not only to model simple database relations, but also to create sophisticated filters and searches.

Get Started

Once the database server connection has been set up, developers now have the possibility to access and manage database tables and .

Create a Relation

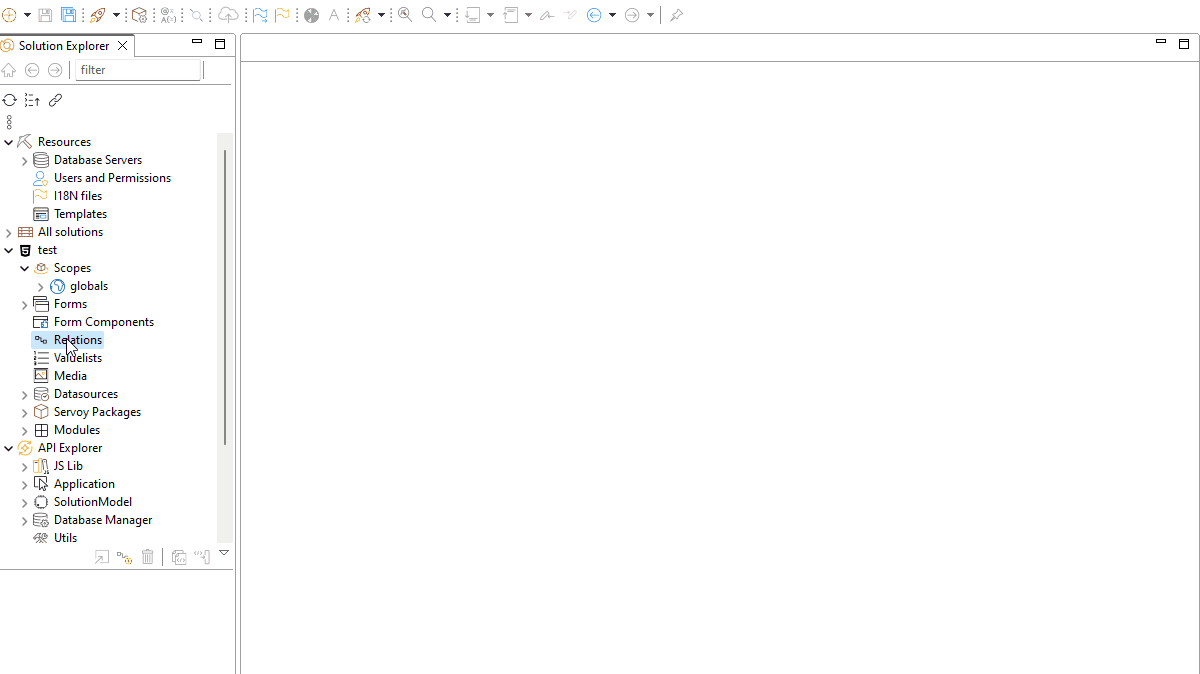

The example below creates a relation from the orders table to the customers table and has the following steps:

  1. From the Solution Explorer, right-click the "Relations" node and select "Create Relation". This will open the Relation Editor.

  2. Handle relation options:

    1. optional: select / unselect the following properties:

  3. Save the editor.

Notice you don't have to specify the relation name. The editor will always suggest source_to_destination, in this case orders_to_customers. This is a good convention to follow for ordinary relations.

Using a Relation at Design-Time

Relations can be used as dataproviders, same as tables' columns. Having first set the source table of the relation as the datasource of the form, you can further use related tables.

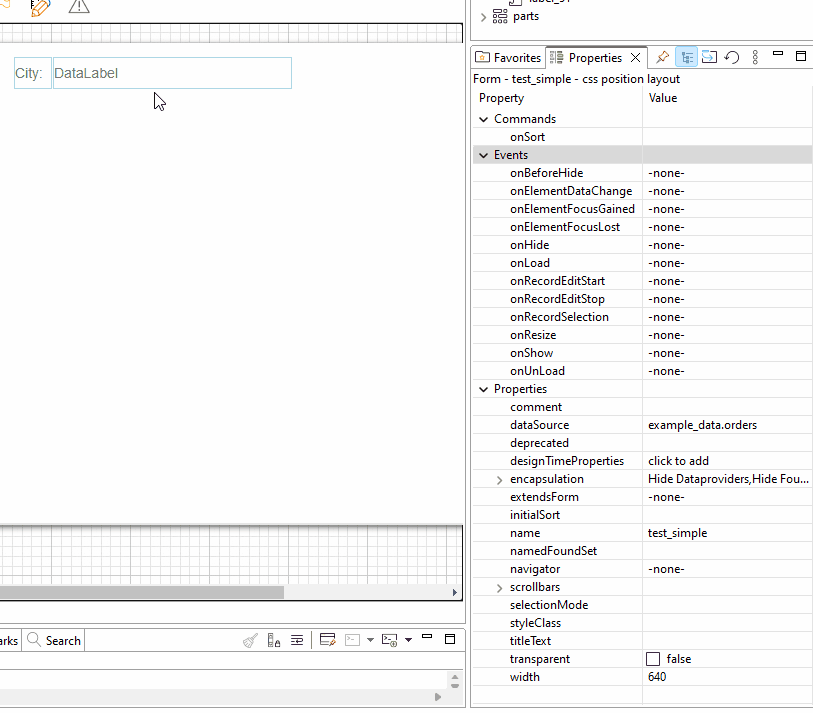

Examples: dataprovider for a component:

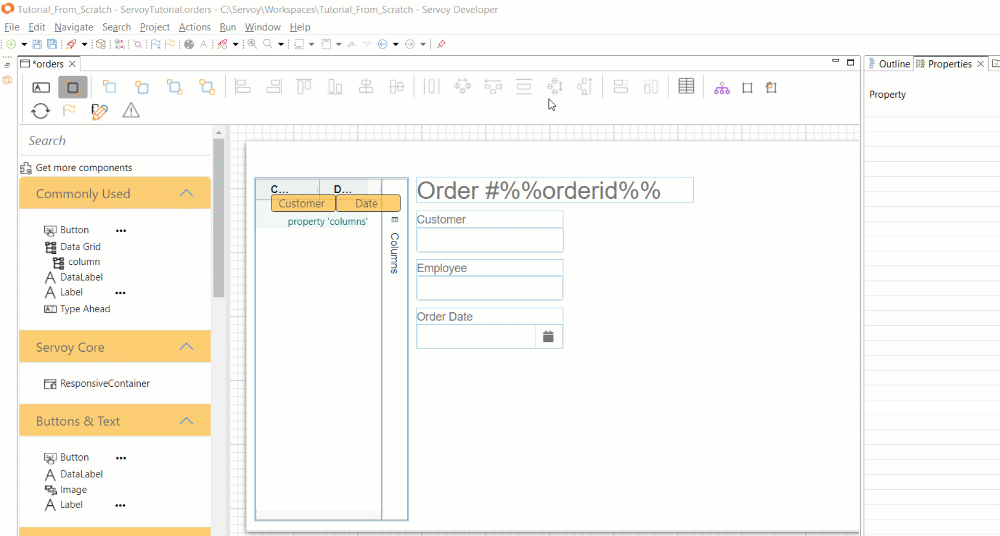

dataprovider for columns in a Data Grid:

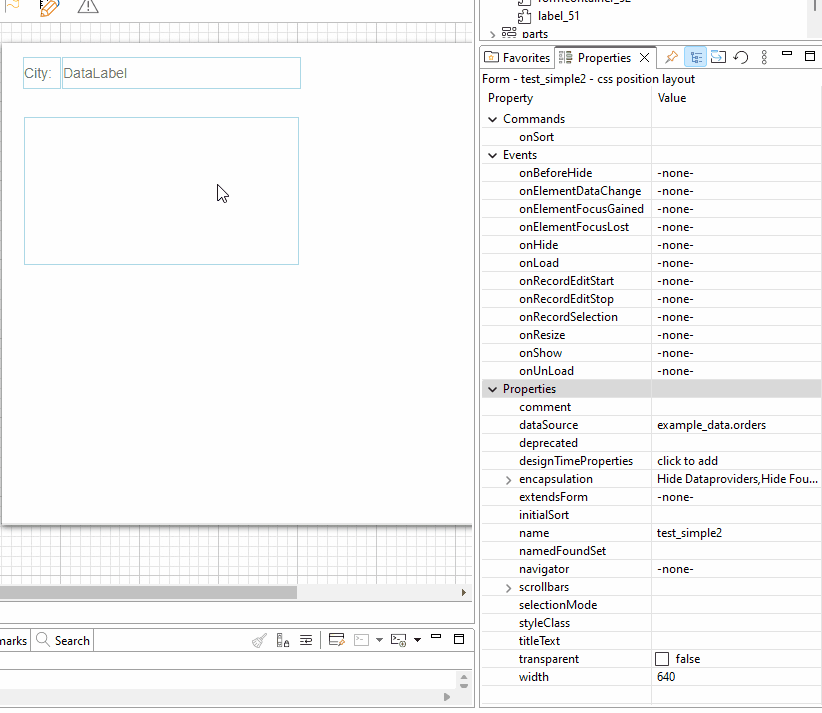

relationName for a form container:

Using a Relation at Run-Time

At Run-Time relations behave like database tables.

Example: Create Related Records:

function addItem(event) {

	// create the record
	orders_to_order_details.newRecord();

	// set the quantity default to 1
	orders_to_order_details.quantity = 1;
}

Here you can see that the relation, orders_to_order_details, can be used in code to reference the related JSFoundSet object and the newRecord method is available. You can also reference the data providers of the related foundset, such as quantity.

Special Relations

Dynamic Relation

In addition to database columns, calculations and global variables may be used as keys for the source table. This provides a means to implement dynamic data filters without writing any code or SQL. A related foundset is refreshed whenever the value of a source key changes. Thus, by using variables and calculations as keys, developers can articulate nuanced views of data that are contextual not only to the source record, but also the changing state of the application.

Example: Assume that one wants to filter a customer's orders by date in different ways, i.e. today, this month, last month, this year, last year, etc. One could define the following relation from customers to orders.

Source
Operator
Destination

customerid

=

customerid

globals.orderFilterStart

<=

orderdate

globals.orderFilterEnd

>=

orderdate

By simply changing the value of the global variables (either programmatically or through the GUI), the related foundset for a customer's orders is updated instantly.

Global Relation

Global relations are simply relations that use only global variables for source data providers. The key difference between global relations and regular table relations is that the related foundset exists in a global context, having no source record as a context. The obvious benefit is that the globally related foundset will be available ubiquitously, instead of being limited to the context of records based on a source table.

Example: Assume that a customer service rep should have a dashboard of all of their orders that are due today. This view could be accomplished using a global relation on the orders table, which could be used anywhere in the application, such as a form in tabpanel to show a dashboard view.

Source
Operator
Destination

globals.currentUserID

=

sales_rep_id

globals.today

=

orderdate

Self Relation

Relations may have the same source and destination table. This is called a Self Relation and has a variety of applications, such as showing data which is hierarchical in nature, or simply showing other records in the same table, which have similar attributes.

Example: When looking at a particular order record, the user may like to see a portal containing a list of all of the other orders made by the same customer as the current order. This could be expressed using a Self Relation, orders_to_orders_by_customer, containing two relation items. The first specifies the same customer, the next ensures that the current order is omitted from the foundset.

Source
Operator
Destination

customerid

=

customerid

orderid

!=

orderid

Example: An employees table is organized such to reflect a companies chain of command. When looking at an employee record, a user should be able to easily see the employee's boss, as well as the people that the employee is managing.

employees_to_employees_manager: The current employee's boss

Source
Operator
Destination

manager_id

=

employee_id

employees_to_employees_managing: The employees managed by the current employee.

Source
Operator
Destination

employee_id

=

manager_id

Container Relation

Container relations are a type of Self Relation used to reference the source record's foundset. To create a container relation, the following must be true:

  • Source table and destination table are the same

  • There are no relations items

A container relation is applicable when a parent form must contain a child form in a TabPanel and the child form is based on the same table and should show the same foundset as the parent. Use of a container relation will ensure that the parent's foundset is shared with the child.

Example: There are three forms based on the customers table: customerMain, customerList, customerDetail. The customerMain form contains the other two forms in a single, unrelated TabPanel, such that the user can easily toggle between list and detail view. The approach will work so long as the customerMain form is also using an unrelated foundset. However, if the customerMain form loads a related foundset (i.e. it is shown through a relation), then the two child forms will still be unrelated and therefore out of sync. The solution is to create a container relation for the customers table and show the 2 child forms through this relation. This guarantees that they will always share the same foundset.

If the child forms are not shown through a relation, the approach may still work in many cases, because unrelated forms of the same table will share a single foundset. This is discussed in more detail in the section covering foundsets.

Set the by clicking the ... button to open the Data Source Chooser. Select the source table name.

Set the by clicking the ... button to open the Data Source Chooser. Select the destination table name.

Create one :

select the in From column

select the in Op column

optionally select the in Modifier column

select the in To column

mandatory:

optional:

optional:

mandatory:

optional:

Source
Destination
Join Type
Initial Sort
Deprecated
Encapsulation
Allow creation of related records
Allow parent delete when having related records
Delete related records
Comment
relations
relation item
primaryDataProvider
operator
modifier
foreignColumnName
Create a Relation
The Relation Editor; creating the relation orders_to_customers
