Push Notifications

Required Phonegap plugins

cordova-plugin-fcm

Requirements for Firebase Messaging

This plugin uses Firebase cloud messaging to send out push notifications. A server key is required from the Google Firebase Cloud Messaging Service. You can sign up for an account and acquire one here.

Follow instructions below to attain a google-services.json and/or GoogleService-Info.plist file as required by the cloud builder.

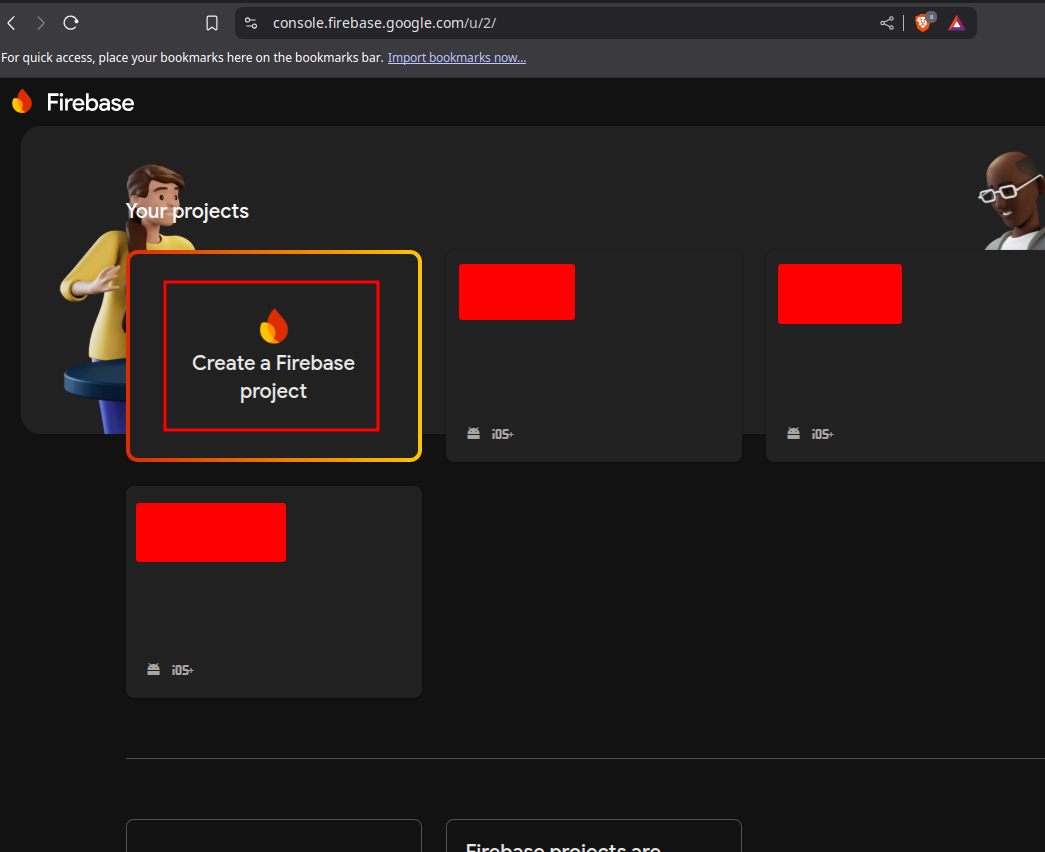

Start by first Creating a new Firebase Project

Create a Firebase project

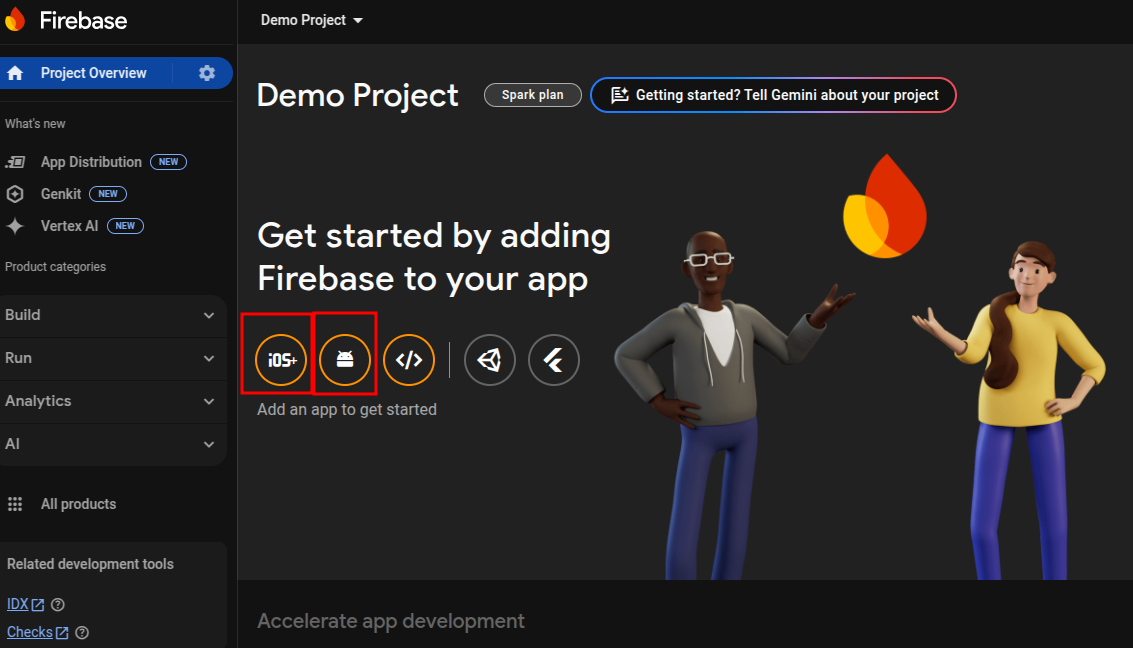

Add a new App to the project

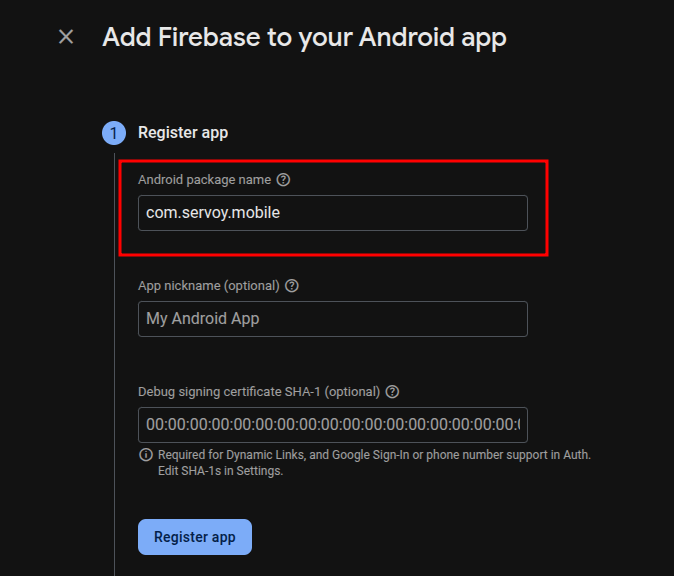

You can add either one or more android or IOS application here. If you need push messaging for both platforms, you will need to add both versions of the application. When registering your application, make sure you use the same package ID as when you added the package to the cloud builder.

Use matching package ID as in Cloud control center

For iOS, you will also need to generate an Apple Push Notification certificate (APN) within the Certificates, Identifiers, and Profiles page. Within the FCM (Firebase console), make sure to upload those certificates as well.

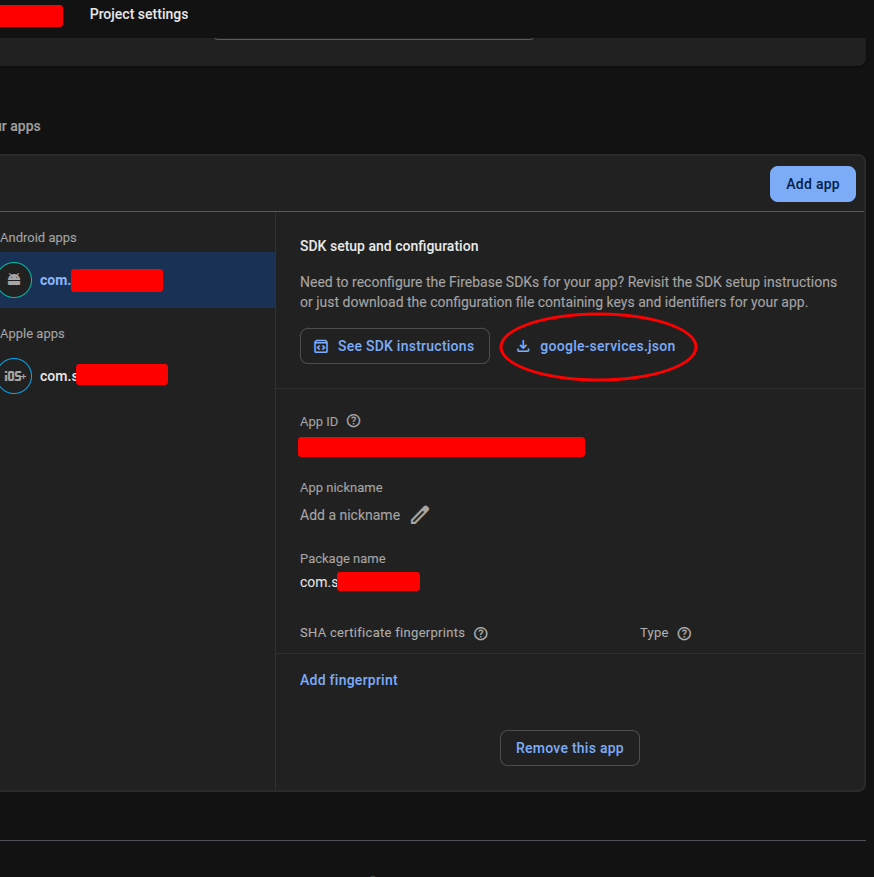

Once the Apps have been registered you can get the google-services.json and GoogleService-Info.plist files. This is used in our cloud builder and sets up your app to be able to receive messages.

Download the google-services.json and GoogleService-Info.plit

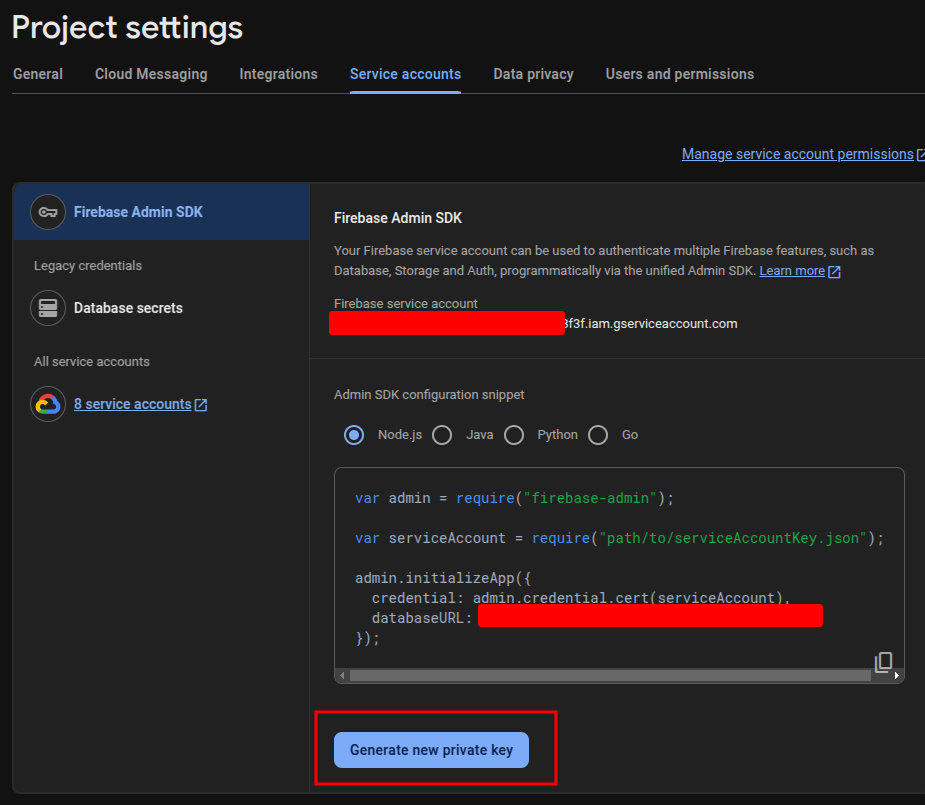

In order to send notifications we need to generate a private key for the service admin SDK. If you do not have a service account setup then you will need to create one first via "Manage service account permissions" link within the settings page.

Once you have downloaded the account service key json file you can add it to the /media/lib/fcm directory under Servoy solution. Name the file services.json so it can be referenced by the sendFCMPushMessage method.

Generate and keep the .json file in a safe place.

API Documentation

Method Summary

onTokenRefresh

Get a callback every time a token is generated, including the initial generation.

Params

Type
Name
Summary
Required

Function

successCallback

on success callback

Optional

Function

errorCallback

on error callback

Optional

getToken

Generate a token

Params

Type
Name
Summary
Required

Function

successCallback

on success callback

Optional

Function

errorCallback

on error callback

Optional

subscribeToTopic

Subscribe to a topic and get notifications All devices are subscribed automatically to 'all' and 'ios' or 'android' topic respectively. Topic String must match the following regular expression: "[a-zA-Z0-9-_.~%]{1,900}".

Params

Type
Name
Summary
Required

Function

successCallback

on success callback

Optional

Function

errorCallback

on error callback

Optional

String

Topic

Topic to subscribe

Required

unubscribeFromTopic

unSubscribe from a topic and no longer receive notifications. All devices are subscribed automatically to 'all' and 'ios' or 'android' topic respectively. Topic String must match the following regular expression: "[a-zA-Z0-9-_.~%]{1,900}".

Params

Type
Name
Summary
Required

Function

successCallback

on success callback

Optional

Function

errorCallback

on error callback

Optional

String

Topic

Topic to unsubscribe from

Required

onNotification

Define the behavior receiving a notification.

Params

Type
Name
Summary
Required

Function

onNotificationCallback

when notification is received

Optional

Function

successCallback

on success callback

Optional

Function

errorCallback

on error callback

Optional

Sending a push notification message

To send notifications we can use scopes.phonegap.sendFCMPushMessage method. This requires adding fcm binaries from the svyphonegap releases page to /medias/lib/fcm directory. You also need to include the services.json file from above in the same directory.

Params

Type
Name
Summary
Required

String

topic

Send to subscribed notification topic

Required

String

title

Notification Tile

Optional

String

body

Notification Body

Optional

String

channel

Notification Channel (ex. urgent_alert)

Optional

Example Usage


//initialize and generate a notification token.
plugins.svyphonegapPush.getToken(null, null);

//subscribe to notifications where topic = svyMobile.
plugins.svyphonegapPush.subscribeToTopic(null, null, 'svyMobile')

//when receiving a notification display a message if UI is visible.
plugins.svyphonegapPush.onNotification(showMessage, null, null)

//Use a callback function to designate behavior when notification is received.
function showMessage(data) {
//if application is in background
	if (data.wasTapped) {
		plugins.dialogs.showInfoDialog('INFO', 'Notification received while UI closed.')
	} else {
//if application is active
		plugins.dialogs.showInfoDialog('INFO', 'Notification received while UI visible.')
	}
}

//Sending a message
scopes.phonegap.sendFCMPushMessage('svyMobile','INFO','This is a message','urgent_alert')
