Task Wizard

A wizard for creating tasks

Overview

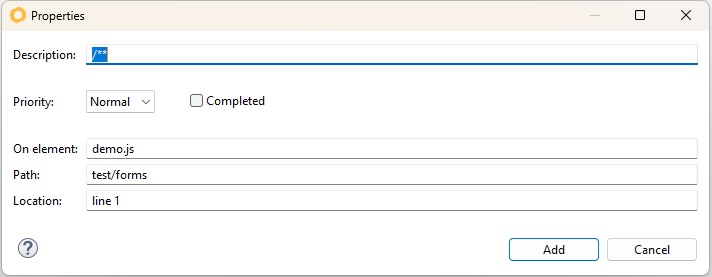

The Task Wizard allows users to add and manage tasks associated with specific elements in their project files.

Sections

Description

A text field where users can enter a description of the task. This helps in identifying the task and understanding its purpose.

Priority

A dropdown menu to set the priority of the task. The options available in the dropdown are:

• High: Indicates a high-priority task that needs immediate attention.

• Normal: Indicates a task with standard priority.

• Low: Indicates a low-priority task that can be attended to later.

Completed

A checkbox to mark the task as completed. When checked, it indicates that the task has been finished.

On element

Displays the name of the element associated with the task. This helps in linking the task to a specific part of the project file.

Path

Displays the path to the element within the project structure. This provides the context of where the element is located in the project.

Location:

Shows the specific location (e.g., line number) within the element where the task is associated. This helps in pinpointing the exact place in the file that requires attention.

Buttons:

Here are the available buttons:

Add

Adds the task with the specified details.

Cancel

Cancels the task creation and closes the wizard.
