Servoy Developer Installation Details
Overview
The Servoy Developer Installation Details provides comprehensive information about the installation and configuration of Servoy Developer.
Sections
Tabs
This window is divided into several tabs, each offering specific details about:
Buttons
It has a general button, available on each tab:
Close: Closes the Servoy Developer Installation Details window.

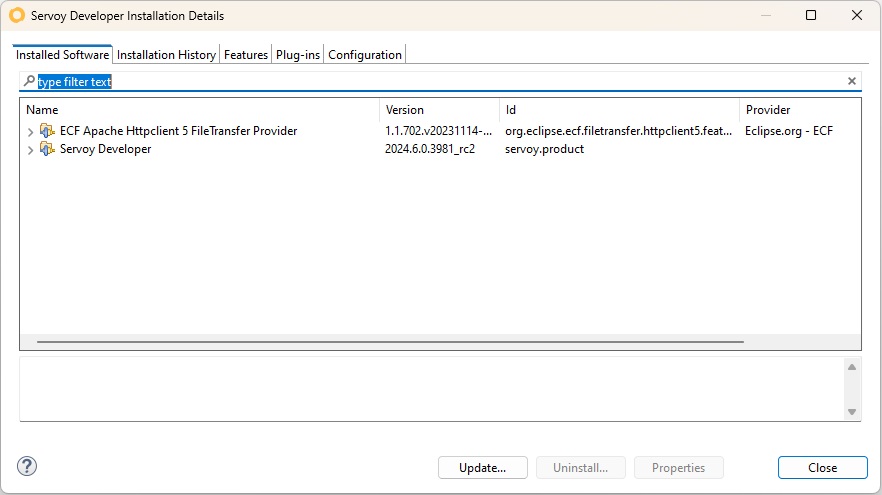

Installed Software
The Installed Software tab lists all the software components currently installed in Servoy Developer. This tab provides essential information about each component, including its name, version, ID, and provider. It also offers options to manage the installed software.
Sections
Filter Field
Allows users to filter the list of installed software components by typing in keywords or phrases.
Software List
Displays a list of installed software components:
Name: The name of the installed software component.
Version: The version number of the installed software component.
Id: The unique identifier for the software component.
Provider: The provider or source of the software component.
Buttons
Here are the available buttons:
Update...: Opens a dialog to update the selected software component to a newer version.
Uninstall...: Allows the user to uninstall the selected software component from Servoy Developer.
Properties: Displays detailed properties of the selected software component, including additional metadata and settings.

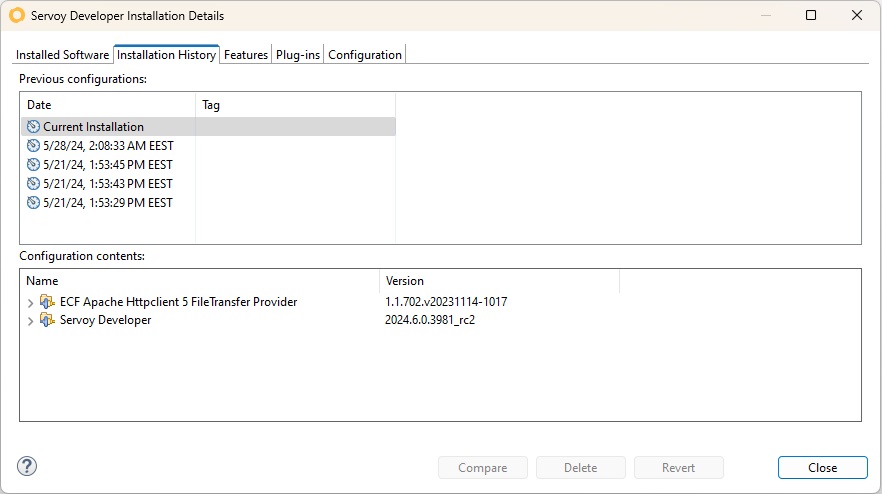

Installation History
The Installation History tab provides a chronological record of all installations and updates made to Servoy Developer. This tab helps users track changes and manage different versions of their development environment.
Sections
Previous Configurations
Displays a list of previous installations and updates, along with the date and time they were performed:
Date: The date and time when the installation or update occurred.
Tag: A label indicating the type of installation, such as "Current Installation" or a specific update tag.
Configuration Contents
Shows the details of the selected configuration, including the name, version, and ID of each software component:
Name: The name of the installed software component.
Version: The version number of the installed software component.
Buttons
Here are the available buttons:
Compare: Compares the selected configuration with the current configuration or another selected configuration.
Delete: Deletes the selected configuration from the history.
Revert: Reverts to the selected configuration, restoring the development environment to that state.

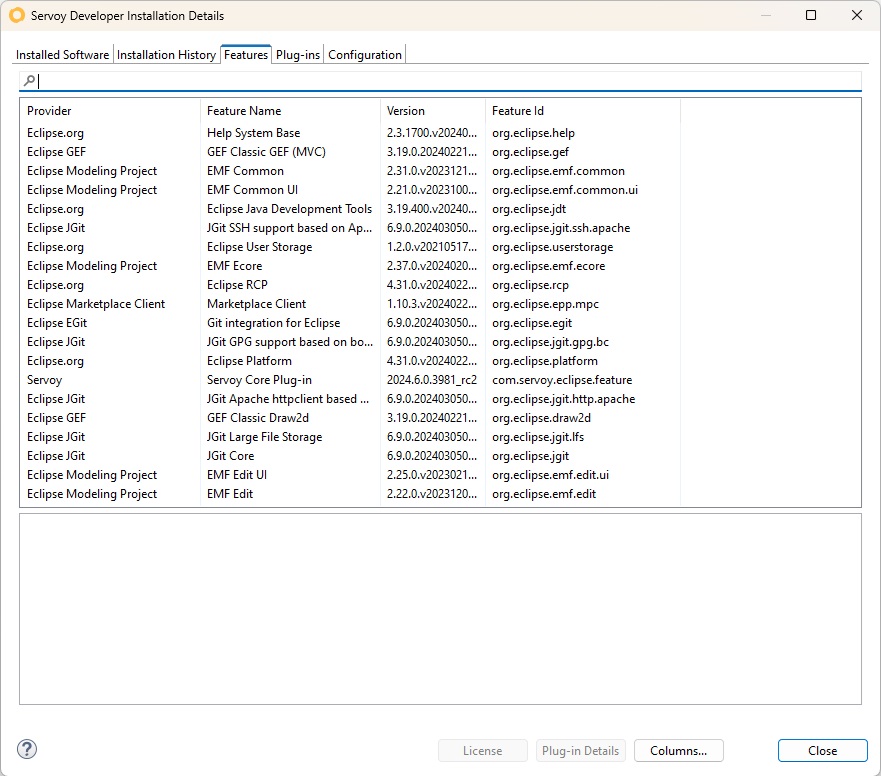

Features
The Features tab provides a comprehensive list of all the features included in the current installation of Servoy Developer. This tab displays information about each feature, including the provider, feature name, version, and feature ID.
Sections
Filter Field
Allows users to filter the list of features by typing in keywords or phrases.
Features List
Displays a detailed list of all the features installed in Servoy Developer, including:
Provider: The provider or source of the feature.
Feature Name: The name of the installed feature.
Version: The version number of the installed feature.
Feature ID: The unique identifier for the feature.
Buttons
Here are the available buttons:
License: Opens a dialog displaying the license information for the selected feature.
Plug-in Details: Opens a page providing detailed information about the plug-ins associated with the selected feature.
Columns...: Allows users to customize the columns displayed in the Features list.

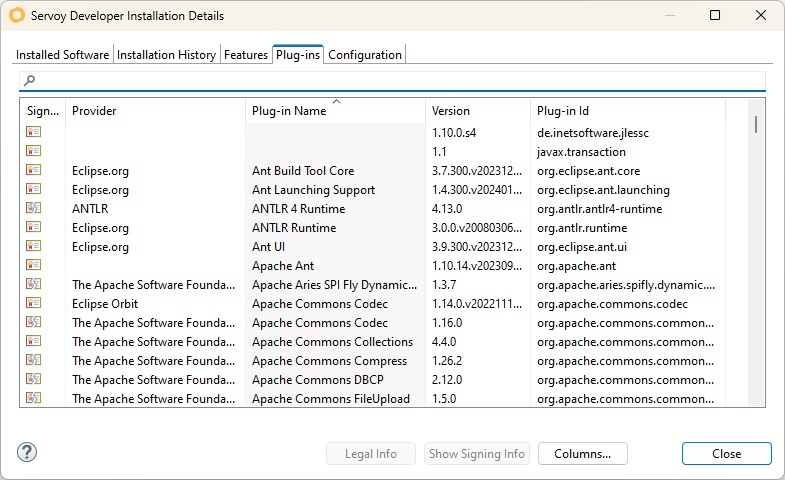

Plug-ins
The Plug-ins tab provides a comprehensive list of all the plug-ins included in the current installation of Servoy Developer. This tab displays information about each plug-in, including the signing status, provider, plug-in name, version, and plug-in ID.
Sections
Filter Field
Allows users to filter the list of plug-ins by typing in keywords or phrases.
Plug-ins List
Displays a detailed list of all the plug-ins installed in Servoy Developer, including:
Sign...: Indicates the signing status of the plug-in (signed or unsigned).
Provider: The provider or source of the plug-in.
Plug-in Name: The name of the installed plug-in.
Version: The version number of the installed plug-in.
Plug-in ID: The unique identifier for the plug-in.
Buttons
Here are the available buttons:
Legal Info: Opens a dialog displaying the legal information and license details for the selected plug-in.
Show Signing Info: Opens a dialog providing detailed information about the signing status of the selected plug-in.
Columns...: Allows users to customize the columns displayed in the Plug-ins list.

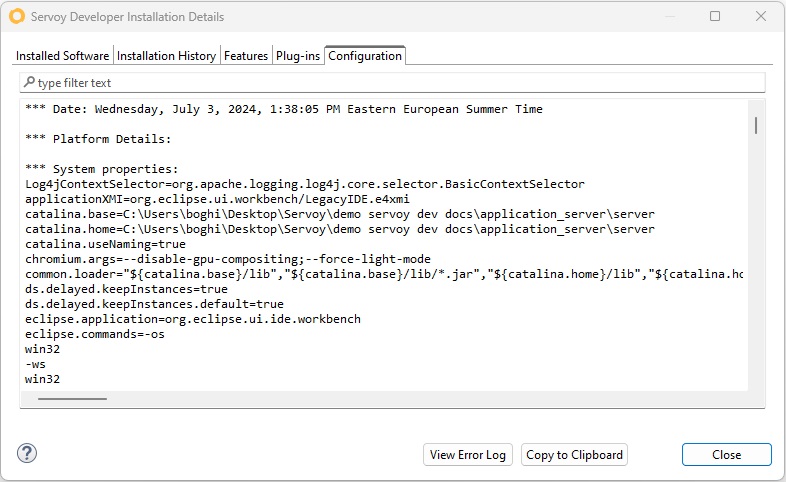

Configuration
The Configuration tab provides detailed information about the configuration settings of Servoy Developer. This includes system properties, platform details, and other relevant configuration data that help in troubleshooting and understanding the environment in which Servoy Developer is running.
Sections
Filter Field
Allows users to filter the configuration details by typing in keywords or phrases.
Configuration Details
Configuration Details: Displays detailed information about the configuration settings, including:
Date: The date and time when the configuration was recorded.
Platform Details: Information about the platform on which Servoy Developer is running.
System Properties: Key-value pairs of various system properties used by Servoy Developer.
Buttons
Here are the available buttons:
View Error Log: Opens the error log, providing access to detailed error messages and stack traces.
Copy to Clipboard: Copies the entire configuration details to the clipboard.
