# Number Format Editor

## Overview

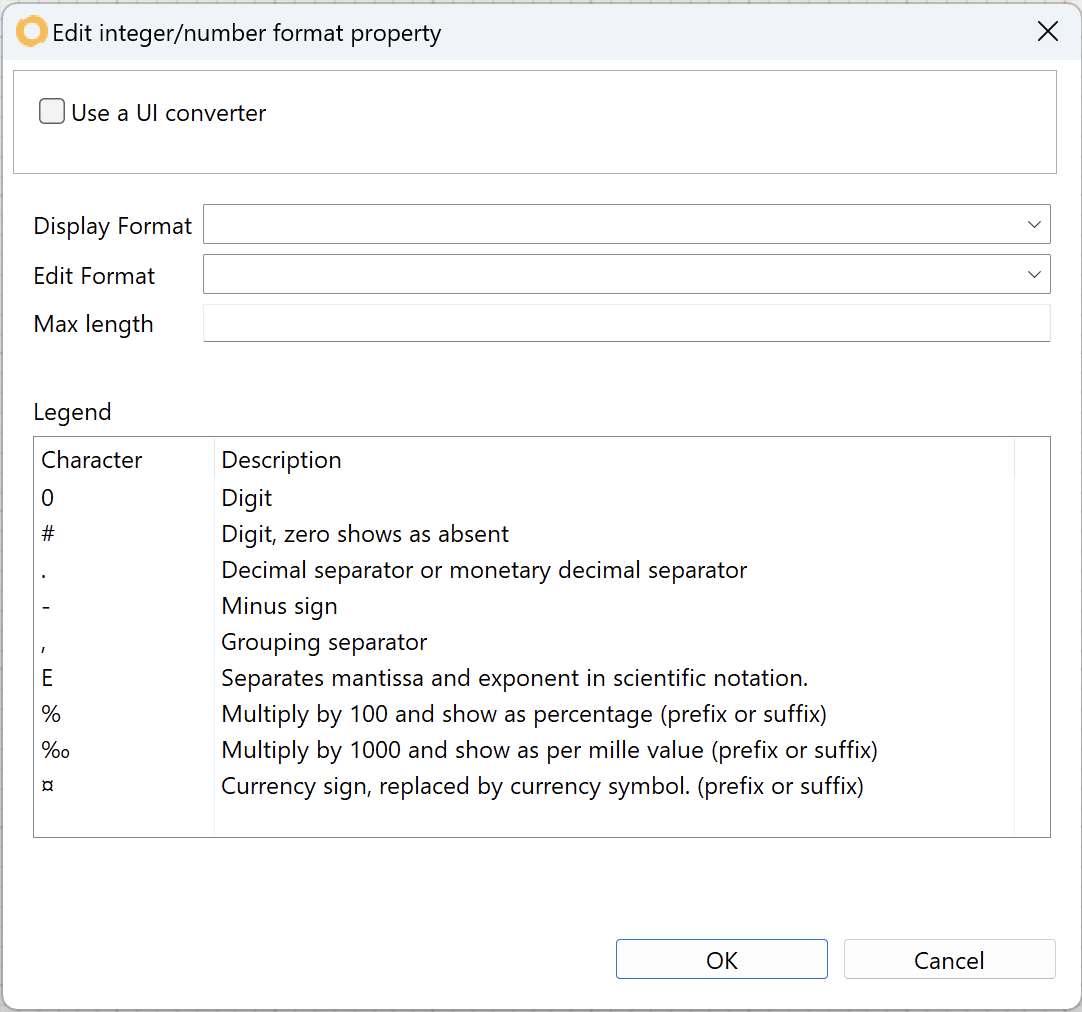

The **Number Format Editor** allows displaying any number (including user input) with a specific format automatically based on how the format is configured in Design time.

<figure><img src="https://3933488479-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjpWd52BKwABWxF2lScUK%2Fuploads%2Fgit-blob-12017def21689b4a28601435616d2b9a0cd3922c%2Fnumber-format-editor.png?alt=media" alt=""><figcaption><p>Number Format Editor</p></figcaption></figure>

It can be used in any place where there is a `format` property:

* Form components like Textbox[^1], Typeahead[^2], Combobox[^3], [Data Label](#user-content-fn-4)[^4]
* Date Columns in the [Table Editor](#user-content-fn-5)[^5]
* Date Columns in Grid components like [Data Grid](#user-content-fn-6)[^6], [Power Grid](#user-content-fn-7)[^7], Table[^8]

## Sections

### UI Converter

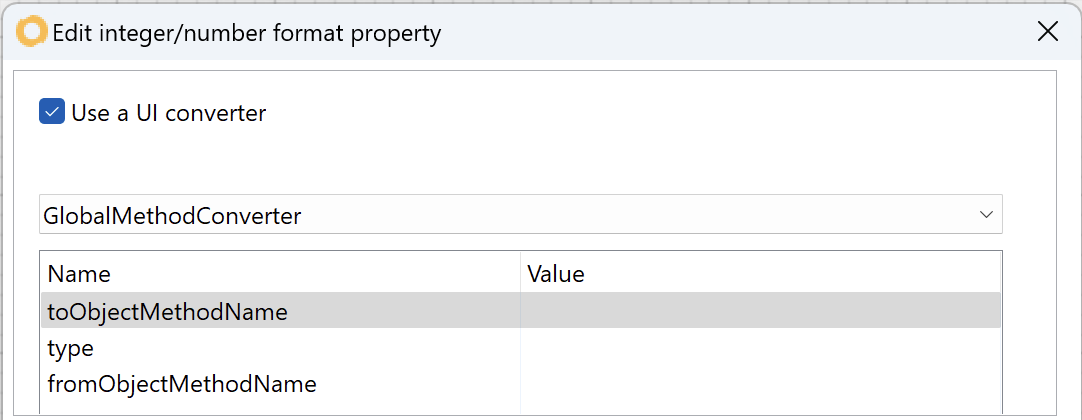

It's located at the top of the editor and it allows modifying the value before applying the format to display and before storing the value in the data provider.

<figure><img src="https://3933488479-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FjpWd52BKwABWxF2lScUK%2Fuploads%2Fgit-blob-6973372a57bb875fddbe0d0a437515af5bc47e09%2Fnfe-ui-converter.png?alt=media" alt=""><figcaption><p>Use UI Converter option</p></figcaption></figure>

### Format Options

There are three options:

* Display Format
* Edit Format
* Max length

The first two allow entering any pattern. You may choose also from one of the predefined pattern in the drop down list. The third one place a limit on the maximum number of digits allowed.

### Legend

This is a helper list with all the special characters that can be used to define the pattern in the *Display Format* and *Edit Format*
